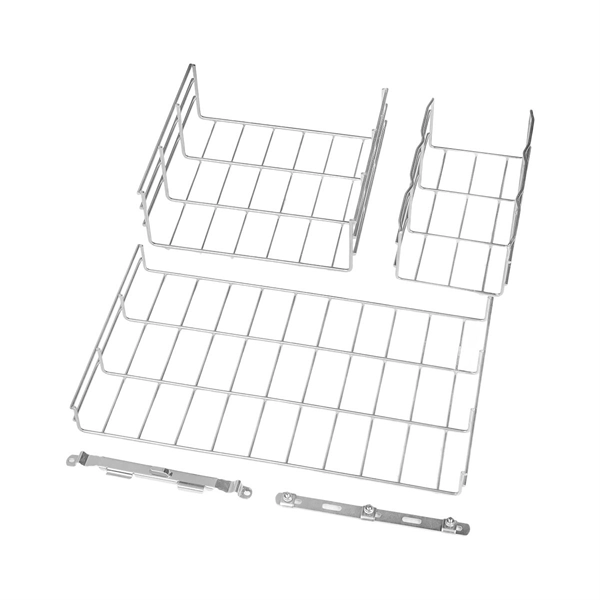

Cables can be layered within cable trays
Explaining NEC Article 392 on Cable Trays
Cables rated 600 volts or less can be installed together in the same cable tray without additional separation, provided they meet the NEC requirements for fill and support . Cables and
Cable Tray Fill Rules (NEC 392)
For cables larger than 4/0 AWG, cables are installed in a single layer (no stacking) and the sum of cable diameters must not exceed the tray width. For cables 4/0 AWG and smaller, the
Cable Tray Questions | Cable Tray Institute
Question 1: Can mechanical utility piping or tubing containing water or compressed air be installed in cable trays with electrical cables? Answer: No. Cable trays are a support system for electrical cables,
Code Corner: 2023 NEC Article 690.31 (C) and (C) (2) Cable Tray
The updated section 690.31 (C) now aligns with the Code''s broader language (like Article 392), allowing these smaller conductors and detailing how to calculate ampacities, the number of
Cable Tray Technical Guide A practical guide to product selection
In designing supports for a cable tray system, consideration should be given to the loads associated with future cable additions and any additional loading that may be applied to the cable tray system (e.g.,
Article 392
Where single conductor cables comprising each phase, neutral, or grounded conductor of a circuit are connected in parallel in a cable tray, the conductors shall be installed _____, to prevent current
690.31 (C) (2) Cable Tray.
(1) All single conductors shall be installed in a single layer. (2) Conductors that are bound together to comprise each circuit pair shall be permitted to be installed in other than a single layer. (3) The sum
How to Manage Cables in Cable Trays: Principles and Methods
Learn how to manage cables in cable trays effectively with our comprehensive guide for cable classification, protection, and installation to ensure electrical system safety and efficiency.
B-Line series Cable Tray Design Considerations
Available in 3, 4, and 6-inch widths with ventilated or solid bottoms, channel cable tray is ideal for smaller instrumentation cables and cable tray runs involving a small number of cables.
NEC Article 392 Guide: Ensuring Compliance for Cable Tray Systems
The short answer is no. Due to their exposure to the open air because of the cable trays, the wires contained within need a very durable outer covering. The regulations dictate that the cables
